Electrical Components - Inductors

• 100% Works with Will All(US/UK/JPN)Imported Wii & Wii-U Models. Just Plug and Play.
• Wired Sensor Bar For Wii & Wii-U Consoles.
• Package contain 1 sensor bar comes is box packing

• Inductance: 47nH; Tolerance: 5%
• DC Resistance Max: 0.72 ohm; Self Resonant Frequency Min: 300MHz
• DC Current Rating: 300mA; Package: 1206; Approx Weight: 1gm
• Applications:- Automotive; Telecommunication; Medical equipment; Industrial equipment
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

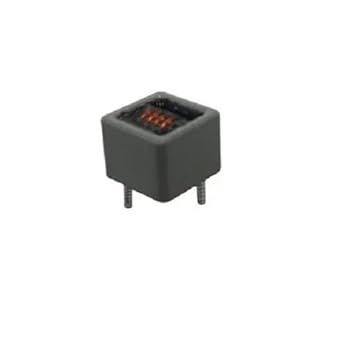

• Manufacturer: MULTICOMP PRO; Manufacturer Part No: MP005770
• Inductance: 1?H; Inductor Construction: Unshielded
• RMS Current (Irms): 18A; Saturation Current (Isat): 23A
• DC Resistance Max: 0.003 ohm; Inductance Tolerance: 15%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

• Inductance: 3.3uH?; Tolerance: 10%; Mounting Type: Through Hole; DC Resistance (DCR)(m) at 20 degreeC: 0.24; Current Rating: 2A; Frequency:1000Hz
• Operating Temperature Range: -40 to 85 degreeC; Small size; High Q factor; High self-resonance frequency; Small magnetic flux leakage; Magnetically shielded; RoHS free
• Dimension:- Inductor Dia: 8mm; Lead Spacing pitch: 3.5mm; Width: 8mm; Height: 10mm; approx Weight: 2gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Motherboards for laptop and desktop computers.; DC/DC converter in distributed power systems or VRM Applications.; Inductor for general purpose use.; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

• Core: Ferrite; Inductance: 3.3H; Tolerance: 20%; Current Rating: 1.5A; Frequency: 100KHz; Approx Weight: 2gm
• DC Resistance (DCR): 101m at 20; Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1; Mount: Surface Mount
• Operating temperature range: -40-+100 (including coils self temperature rise)
• Storage temperature range: -40-+100
• Application Includes: Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc

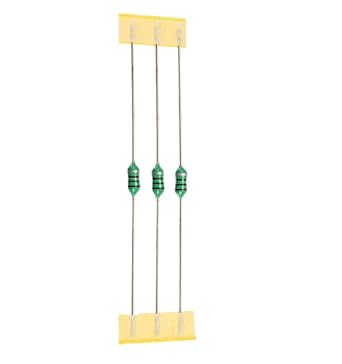

• Inductance: 47uH; Tolerance: 10%
• DC Resistance @ 20 degreeC: 2.6M; Current Rating: 0.2A
• Frequency: 2.52Mhz; Operating Temperature Range: -40 ~ 85 degreeC
• Mounting Type: Through Hole; Approx Weight: 1gm
• Applications Include:- Electronics Products; Communication Equipment; Computer Devices; TV, VCR, Radios, etc

• Inductance: 1uH?; Tolerance: 10%; Mounting Type: Through Hole; DC Resistance (DCR)(m) at 20 degreeC: 0.24; Current Rating: 2A; Frequency:1000Hz
• Operating Temperature Range: -40 to 85 degreeC; Small size; High Q factor; High self-resonance frequency; Small magnetic flux leakage; Magnetically shielded; RoHS free
• Dimension:- Inductor Dia: 8mm; Lead Spacing pitch: 3.5mm; Width: 8mm; Height: 10mm; Approx Weight: 2gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Motherboards for laptop and desktop computers.; DC/DC converter in distributed power systems or VRM Applications.; Inductor for general purpose use.; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

• Inductance: 330?H
• Tolerance: 10%
• Current Rating: 0.5A
• DC Resistance (DCR)(m) at 20 degreeC: 0.45
• Inductor Dia: 9mm, Lead Spacing pitch: 4.5mm, Width: 9mm, Height: 12mm

• Inductance: 100?H
• Tolerance: 10%
• Current Rating: 0.45A
• DC Resistance (DCR)(m) at 20 degreeC: 0.31
• Inductor Dia: 6mm, Lead Spacing pitch: 3.5mm, Width: 6mm, Height: 8mm

• Part No: MCSCH895-221KU; Product Range: MCSCH895
• Inductance: 220?H; Inductor Construction: Unshielded
• RMS Current (Irms): 640mA; DC Resistance Max: 0.48 Ohm
• Inductance Tolerance: 10%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

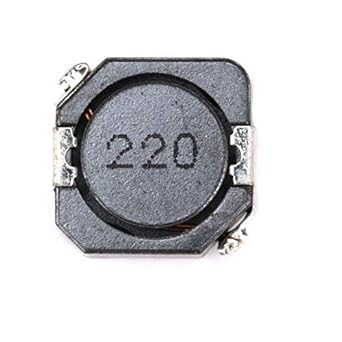

• Core: Ferrite; Inductance: 22H; Tolerance: 30%; Current Rating: 2.85A; DC Resistance (DCR): 75m at 20
• Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1;
• Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Dimension: Length-10mm, Width-10mm; Height-4mm; Approx Weight-4gm
• Application Includes: Ideally used in electronics Devices, P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors,; Ideally, this inductor finds its use in notebook PCs, Game Machines, etc

• Inductance: 1uH?; Tolerance: 10%; Mounting Type: Through Hole; DC Resistance (DCR)(m) at 20 degreeC: 0.24; Current Rating: 2A; Frequency:1000Hz
• Operating Temperature Range: -40 to 85 degreeC; Small size; High Q factor; High self-resonance frequency; Small magnetic flux leakage; Magnetically shielded; RoHS free
• Dimension:- Inductor Dia: 6mm; Lead Spacing pitch: 3.5mm; Width: 6mm; Height: 8mm; Approx Weight: 2gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Motherboards for laptop and desktop computers.; DC/DC converter in distributed power systems or VRM Applications.; Inductor for general purpose use.; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

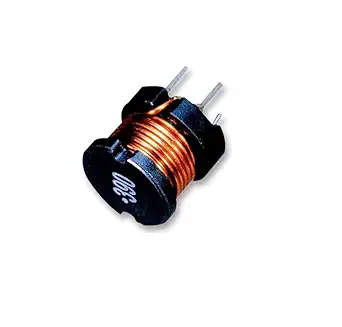

• Part No: MCSCH895-330KU
• Inductance: 33?H; RMS Current (Irms): 2A
• DC Resistance Max: 0.06ohm
• Inductance Tolerance: 20%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

• Value: 3.3uH
• Tolerance: 10%
• Package: 2 Pieces
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

• Inductance: 1mH
• Current Rating: 0.27A
• Operating Temperature Range: -40 to 85 degreeC
• DC Resistance (DCR)(m) at 20 degreeC: 1.8
• Length: 11mm,Width: 9mm

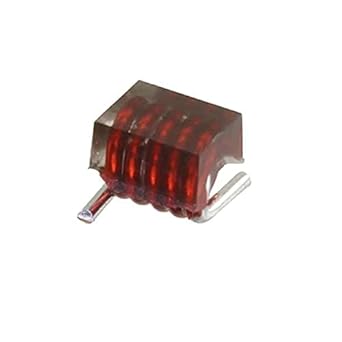

• Inductance: 22nH
• Tolerance: 5 %
• DC Resistance (DCR): 5.6m at 20 degree
• urrent Rating: 3A
• Self Resonant Frequency Min.: 2.1GHz
