Electrical Components - Inductors

• High current capacity; Low DCR; Ferrite bobbin core; VW-1 rated shrink tubing to cover winding
• Dash No. marking for identification; Dielectric strength 2500 Vrms; Operating temperature -40 to +125 degreeC; Test frequency 1 KHz
• Manufacturer Product Number: 5800-101-RC; Type: Drum Core, Wirewound; Material Core: Ferrite; Inductance: 100 ?H; Tolerance: 10%
• Current Rating: 800 mA; Current Saturation (Isat): 1.1A; DC Resistance (DCR): 210 mOhm Max; Inductance Frequency Test: 1 kHz; Operating Temperature: -55 degreeC ~ 105 degreeC
• Mounting Type: Through Hole; Package / Case: Axial; Product Diameter: 6.99 mm; Product Length: 17.78 mm

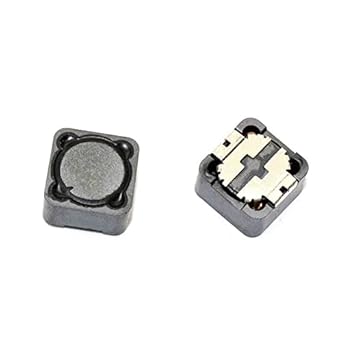

• Part No: CDRH127; Inductance: 22H; Tolerance: 10%; Current Rating:3.6A; Ferrite core drum construction
• Magnetically shielded; Moisture sensitivity level: 1; Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Dimension:- Length: 12mm; Width: 12mm; Height: 7mm; Approx Weight: 4 gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

• Value: 680uH
• Power Rating: 1/2 Watt
• Tolerance: 10%
• Package: 3 Pieces

• Manufacturer Part No: MP005780; Inductance: 1?H
• Inductor Construction: Unshielded; RMS Current (Irms): 35A
• Saturation Current (Isat): 40A; DC Resistance Max: 0.00145ohm
• Inductance Tolerance: 20%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

• Value: 220uH
• Tolerance: 10%
• Package: 3 Pieces

• 33UH 16X7MM 8A FERRITE MAGNETIC INDUCTOR COIL TOROIDAL 0.8MM WIRE DIAMETER

• Pack Of 2

• Inductance: 10?H, RMS Current (Irms): 3A
• Saturation Current (Isat): 2.8A, Inductor Construction: Shielded
• Inductance Tolerance: 20%, DC Resistance Max: 0.06ohm
• Product Range: SRR1260 Series, Approx Weight: 7gm
• Power Inductor Case: 12.5mm x 12.5mm x 6mm

• Core: Ferrite, Inductance: 2.2H, Tolerance: 30%
• Current Rating: 8A, DC Resistance (DCR): 11m at 20, Ferrite core drum construction, Magnetically shielded, Moisture sensitivity level: 1
• Operating temperature range: -40-+100 (including coils self temperature rise), Storage temperature range: -40-+100
• Dimension: Length-10mm, Width-10mm, Height-4mm, Approx Weight-4gm
• Application Includes: Ideally used in electronics Devices, P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc

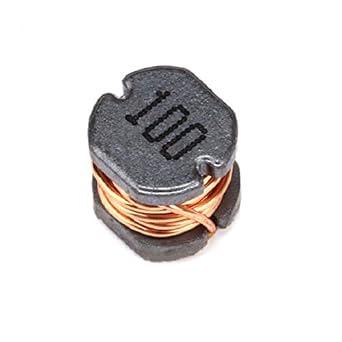

• Core: Ferrite; Inductance: 10H; Tolerance: 20%; Current Rating: 1.44A; Frequency: 100KHz
• DC Resistance (DCR): 100m at 20; Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1
• Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Mount: Surface Mount; Approx Weight: 2gm
• Application Includes: Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc

• Inductance: 2.2uH
• Current Rating: 0.45A
• Operating Temperature Range: -40 to 85 degreeC
• DC Resistance (DCR)(m) at 20 degreeC: 0.31
• Length: 6mm,Width: 8mm

• Inductance: 4.7?H
• Tolerance: 10%
• Current Rating: 0.45A
• DC Resistance (DCR)(m) at 20 degreeC: 0.31
• Inductor Dia: 6mm, Lead Spacing pitch: 3mm, Width: 6mm, Height: 8mm

• Inductance: 4.7?H
• Tolerance: 10%
• Current Rating: 1.5A
• DC Resistance (DCR)(m) at 20 degreeC: 0.16
• Inductor Dia: 9mm, Lead Spacing pitch: 4mm, Width: 9mm, Height: 12mm

• Inductance: 22?H
• Tolerance: 10%
• Current Rating: 2.7A
• DC Resistance (DCR)(m) at 20 degreeC: 0.05
• Inductor Dia: 9mm, Lead Spacing pitch: 4.5mm, Width: 9mm, Height: 12mm

• Value: 68uH
• Tolerance: 10%
• Mounting Type: Through Hole
• Current Rating: 600mA
• Applications Include:- Electronics Products; Communication Equipment; Computer Devices; TV, VCR, Radio, etc..

• Inductance: 47nH
• tolerance: 5 %
• DC Resistance (DCR): 5.6m at 20 degreec
• Current Rating: 3A
• Self Resonant Frequency Min.: 2.1GHz
