Electrical Components - Inductors

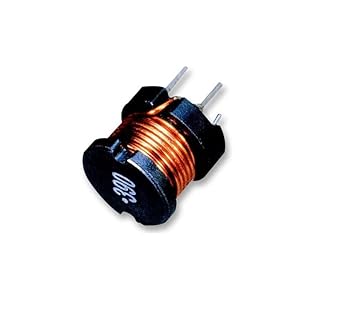

• Part No: MCSCH895-152KU; Product Range: MCSCH895 Series
• Inductance: 1.5mH; Inductor Construction: Unshielded
• RMS Current (Irms): 350mA; DC Resistance Max: 3 Ohm
• Inductance Tolerance: 10%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

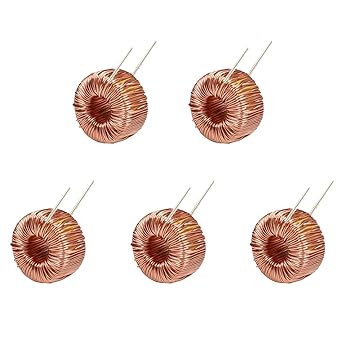

• Type: Toroidal
• Inductance: 220?H
• Material: Core Ferrite
• Tolerance: 20%
• Current Rating (Amps): 2.4A

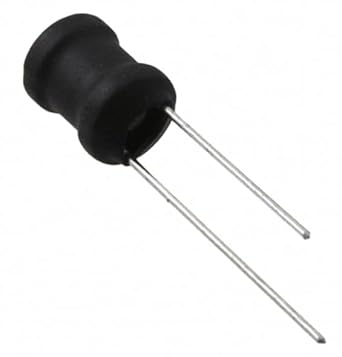

• Inductance: 470?H
• Tolerance: 10%
• Current Rating: 0.43A
• DC Resistance (DCR)(m) at 20 degreeC: 0.62
• Inductor Dia: 9mm, Lead Spacing pitch: 4.5mm, Width: 9mm, Height: 12mm

• Inductance: 330?H
• Tolerance: 10%
• Current Rating: 0.6A
• DC Resistance (DCR)(m) at 20 degreeC: 0.66
• Inductor Dia: 8mm, Lead Spacing pitch: 4.5mm, Width: 8mm, Height: 10mm

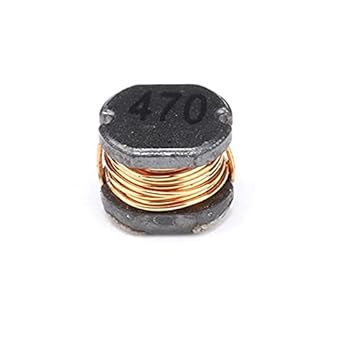

• Part No: CD54NP-470LC; Make: Sumida; Core: Ferrite; Inductance: 47H; Tolerance: 15%
• Current Rating: 0.72A; Frequency: 2.52 kHz; DC Resistance: 370 Ohm Max; Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1
• Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100; Mount: Surface Mount; Approx Weight: 2gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

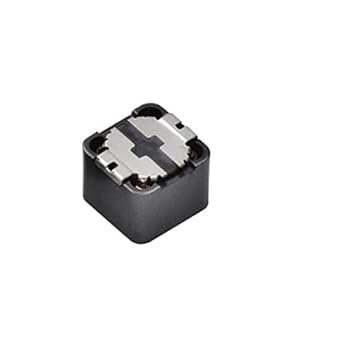

• Part No: CDRH127/LDNP-221MC; Manufacturer: Sumida; Core: Ferrite; Inductance: 220uH; Tolerance: 30%; Current Rating: ?1.45A; DC Resistance (DCR): 36.4 mOhms at 20
• Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1; Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Dimension:- Length: 12.3 mm; Width: 12.3 mm; Height: 8mm; Approx Weight: 4gm
• Applications Include:- Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc
• Packaged by:- Sharvi Technologies (OPC) Pvt. Ltd.; Address:- #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

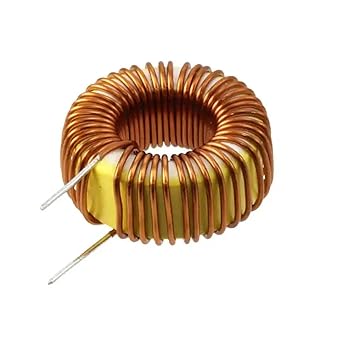

• Product Name : Inductance coil ; Product model : TC68-26D
• Inductance Capacity : 1MH ; Wire Diameter : 0.5mm
• Rated Current : 3A ; Number of lines : 1;
• Magnetic ring shape : annulus ; Magnetic ring type: yellow-white ring
• High-reliability leaded inductor low-resistance leaded inductor.Axial leaded power inductor radial leaded power inductor UL-polyolefin shrinking tubing leaded inductor

• Inductance: 22?H
• Tolerance: 10%
• Current Rating: 2.1A
• DC Resistance (DCR)(m) at 20 degreeC: 0.07
• Inductor Dia: 8mm, Lead Spacing pitch: 4.5mm, Width: 8mm, Height: 10mm

• Inductance: 470?H
• Tolerance: 10%
• Current Rating: 0.52A
• DC Resistance (DCR)(m) at 20 degreeC: 0.91
• Inductor Dia: 8mm, Lead Spacing pitch: 4.5mm, Width: 8mm, Height: 10mm

• Type: Toroidal
• Inductance: 220?H
• Material: Core Ferrite
• Tolerance: 20%
• Current Rating (Amps): 2.4A

• 1mH Inductance
• Saturation Current: 3A
• DC Resistance: 0.062R
• Style: Shielded with heat shrink tube

• Value: 100uH
• Tolerance: 10%
• Package: 2 Pieces

• Inductance: 10?H
• Tolerance: 10%
• Current Rating: 1A
• DC Resistance (DCR)(m) at 20 degreeC: 0.024
• Inductor Dia: 6mm, Lead Spacing pitch: 3mm, Width: 6mm, Height: 8mm

• Core: Ferrite; Inductance: 47H; Tolerance: 30%; Current Rating: 1.9A; DC Resistance (DCR): 128m at 20;
• Magnetically shielded; Moisture sensitivity level: 1;
• Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Dimension: Length-10mm, Width-10mm, Height-4mm, Approx Weight-4gm
• Application: Ideally used in electronics Devices; P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc

• Precise Inductance: Each inductor in this pack has a 3.3 uH inductance with a +/- 10% tolerance, ensuring consistent performance.
• Wide Application: Suitable for a variety of electronic applications, including power supplies and signal processing.
• Pack of 50: Get a bulk supply of 50 inductors, perfect for multiple projects or stocking up your electronics toolbox.
• Stable Performance: These inductors provide stable and efficient operation, helping you achieve optimal results in your circuits.
• Quality Construction: Crafted with high-quality materials, these inductors adhere to technical specifications, ensuring durability and reliability.
