Electrical Components - Transistors

• Transistor type Medium power NPN transistor
• Current gain : 50
• Maximum voltage across collector-emitter : 100V
• Maximum current allowed through collector : 3A DC
• DC motor speed control

• Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
• Modularity and easness of installation
• Large choice of I/O system to enhance the capabilities of Modicon M2xx plc
• Intuitive machine programming with EcoStruxure Machine Expert
• Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension

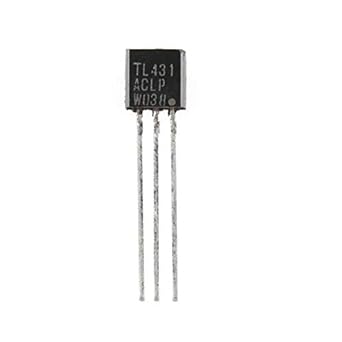

• Max Cathode voltage: 37 V
• Max Continuous cathode current range: 150 mA
• Active output circuitry provides a very sharp turn-on characteristic

• NPN TRANSISTOR 40V 600MA SOT23
• PackageTO-236-3, SC-59, SOT-23-3
• Collector Emitter Breakdown Voltage 40V
• Current- 600MA
• From Shelfkey

• BD139 BD140 Plastic Medium-Power Silicon NPN - PNP Transistors This series of plastic, mediumpower silicon transistors are designed for use as audio amplifiers and drivers
• Max working Voltage Vce = +-80 volts, Max Collector Current - 1.5 Amp
• Max Power Dissipation - 12.5 Watts
• Suitable for use in High Power Audio amplifiers & Home Theater Systems.

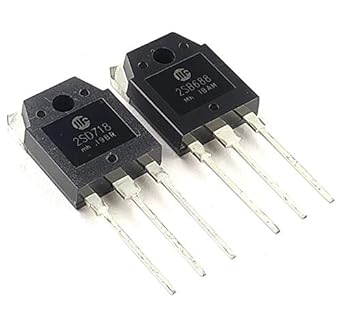

• Complement to Type 2SD718
• Collector-Emitter Breakdown Voltage V(BR)CEO= -120V(Min)
• Recommend for 45-50W audio frequency amplifier output stage applications

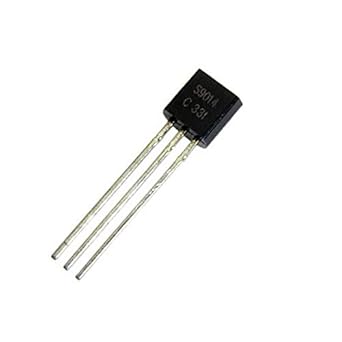

• NPN, Silicon
• Max Collector Continuous Current: 0.5 A
• Max Collector-Emitter Voltage: 45 V
• Max Collector-Base Voltage: 50 V
• Max Emitter-Base Voltage: 5 V

• Product Name : Aluminium Heatsink for Power transistor
• The material used : Aluminum
• Color : Silver Tone
• Overall Size : 2cm x 2.3cm x 1cm (L*W*H)

• Avail upto 100% Amazon Pay CASHBACK | Cashback details will be available in the package
• Tested and 100% Working
• PN2222A - 10PCS
• PN2222A is NPN Transistor

• BC547 npn transistor 45v 100ma hfe 150 specifications: bipolar transistor, npn, 45v, to-92
• Maximum LDR voltage: 150 Volt DC
• Maximum wattage: 100 mW; Spectral peak: 540 nm
• Light resistance (10 Lux): 50-100 Kohm; Operating temperature: - 30 ~ + 70 degree Celsius

• Avail upto 100% Amazon Pay CASHBACK | Cashback details will be available in the package
• Tested and 100% Working
• excellent quality with best material

• These devices are designed for highvoltage, highspeed power switching inductive circuits where fall time is critical. They are particularly suited for 115 and 220 V SWITCHMODE applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.
• Reverse Biased SOA with Inductive Loads @ TC = 100C; 700 V Blocking Capability.
• Inductive Switching Matrix 0.5 to 1.5 A, 25 and 100C tc @ 1 A, 100C is 290 ns (Typ)
• Collector Emitter Voltage V(br) ceo: 400V; Transition Frequency ft: 10MHz; Power Dissipation Pd: 1.4W; DC Collector Current: 1.5A; DC Current Gain hFE: 4hFE.
• Package Include 10 x MJE13003

• Transistor Type: NPN
• Max Collector Current(IC): 6A or 6000mA
• Max Collector-Emitter Voltage (VCE): 100V
• Max Collector-Base Voltage (VCB): 100V
• Max Emitter-Base Voltage (VEBO): 5V
