Electrical Components - Inductors

• 14pin SMD To DIP PCB SOIC SOP MSOP SSOP TSSOP

• Small vertical inductors occupy less space
• 145 pieces of inductors in 12 values can meet your general needs
• With special guide pin structure, not easy to produce open circuit phenomenon
• Protected with PVC or UL tube
• Small ibuted capacitance and high self-resonance frequency

• 4.7uH RH104 SMD Inductor 4R7
• 4.7 Micro Henry SMD INDUCTOR

• Core: Ferrite; Inductance: 4.7H; Tolerance: 30%; Current Rating: 8A
• DC Resistance (DCR): 19.1m at 20; Ferrite core drum construction; Magnetically shielded; Moisture sensitivity level: 1
• Operating temperature range: -40-+100 (including coils self temperature rise); Storage temperature range: -40-+100
• Dimension: Length-10mm; Width-10mm; Height-4mm, Approx Weight-4gm
• Application Includes: Ideally used in electronics Devices, P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors; Ideally, this inductor finds its use in notebook PCs; Game Machines, etc

• Inductance: 2.2uH
• Current Rating: 0.8A
• Operating Temperature Range: -40 to 85 degreeC
• DC Resistance (DCR)(m) at 20 degreeC: 0.24
• Inductor Dia: 8mm, Lead Spacing pitch: 3.5mm, Width: 8mm, Height: 10mm

• Manufacturer: MULTICOMP PRO; Manufacturer Part No: MP005777
• Inductance: 300nH; Inductor Construction: Unshielded
• RMS Current (Irms): 43A; Saturation Current (Isat): 50A
• DC Resistance Max: 650?ohm; Inductance Tolerance: 15%; Mounting Type: Through Hole
• Applications: Motherboards for laptop and desktop computers; DC/DC converter in distributed power systems or VRM Applications; Inductor for general purpose use

• Inductance: 1mH
• Current Rating: 1.5A
• Operating Temperature Range: -40 to 85 degreeC
• DC Resistance (DCR)(m) at 20 degreeC:3.2
• Length: 9mm,Width: 6mm

• Value: 4.7uH
• Tolerance: 10%
• Package: 2 Pieces

• CMC Choke Common Mode Inductor Filter

• High current capacity; Low DCR; Ferrite bobbin core; VW-1 rated shrink tubing to cover winding
• Dash No. marking for identification; Dielectric strength 2500 Vrms; Operating temperature -40 to +125 degreeC; Test frequency 1 KHz
• Manufacturer Product Number: 5800-101-RC; Type: Drum Core, Wirewound; Material Core: Ferrite; Inductance: 10 mH; Tolerance: 10%
• Current Rating: 76 mA; Current Saturation (Isat): 110mA; Shielding: Unshielded; DC Resistance (DCR): 24 Ohm Max; Operating Temperature: -55 degreeC ~ 105 degreeC
• Inductance Frequency Test: 1 kHz; Mounting Type: Through Hole; Package / Case: Axial; Product Diameter: 6.99 mm; Product Length: 17.78 mm

• Inductance: 10?H
• Tolerance: 10%
• Current Rating: 3.8A
• DC Resistance (DCR)(m) at 20 degreeC: 0.04
• Inductor Dia: 8mm, Lead Spacing pitch: 4mm, Width: 8mm, Height: 10mm

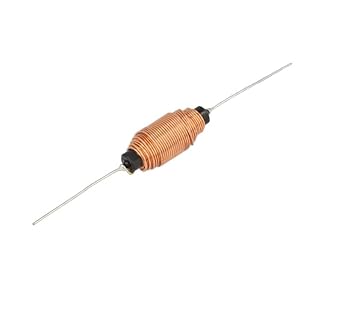

• Manufacturer Part No: 5254-RC; Product Type: Fixed Inductors; Core Material: Ferrite; Inductance: 250uH; Tolerance: 20%
• Inductance Test Frequency: 1Khz; Maximum DC Current: 2.5A; Maximum Saturation Current: 2.5A; Maximum DC Resistance: 0.17 Ohm
• Minimum Self Resonant Frequency: 1.3Mhz; Number of Terminals: 2; Minimum Operating Temperature: -55 degreeC; Maximum Operating Temperature: 105 degreeC
• Product Diameter: 11.18 mm; Product Length: 31.75 mm; Mounting: Through Hole; Lead Style: Axial
• Applications: EMI filters; Output chokes; Smooting coils

• Inductance: 10?H
• Tolerance: 10%
• Current Rating: 3.4A
• DC Resistance (DCR)(m) at 20 degreeC: 0.03
• Inductor Dia: 9mm, Lead Spacing pitch: 4.5mm, Width: 9mm, Height: 12mm

• Inductance: 330?H
• Tolerance: 10%
• Current Rating: 0.3A
• DC Resistance (DCR)(m) at 20 degreeC: 0.95
• Inductor Dia: 6mm, Lead Spacing pitch: 3.5mm, Width: 6mm, Height: 8mm
