Insulators, Insulation Material & Accessories - Bus Bar Insulator

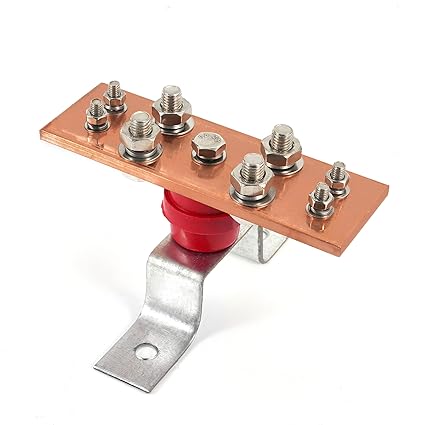

• Pack A high conductivity copper ground set.Including 1 copper plate,1 SM40 polyester standoff insulator,1 low carbon steel bracket,8 sets washer&bolts.
• Size Copper bar:0.24\"x 1.97\"x 6\"(6x50x152mm),Thickness 0.24\"(6mm),Width 1.97\"(50mm),Length 6\"(152mm),small hole 0.31\"(8mm),large hole 0.44\"(11mm).
• Outstanding Product TGB is a grounding bar used in grounding systems. It is commonly used in railway traction systems to centrally connect various systems and equipment served by telecom cabinets. TGB provides current distribution and grounding functions to ensure the safe operation of equipment and systems.
• High Quality Material The copper plate is C11000 grade copper.SM40 polyester insulators made from UL recognized material,rated uimp up to 6kV.The brackets are made of low carbon steel and the screws are made of 304 stainless steel.
• Application TGB is primarily used for centralized grounding connection in telecommunication system, such as telecom equipment room, data center, telecom base station, and communication equipment cabinet.

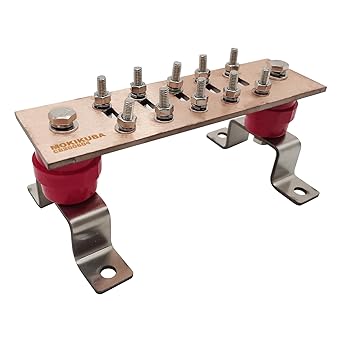

• Copper ground bus bar kit dimension: 7.88\"x2.36\"x .157\" with 1/4\" * 10 Terminal Positions.
• Package Includes: 1x Copper Plate, 2 x Stainless Steel Brackets, 2 x 1.57\" Standoff Insulators, 10 x Sets of Stainless Steel Washer& Bolts.
• High-quality material:Copper bar made of high conductivity c1100 copper plate to inhibit corrosion and ensure good conductivity providing multiple grounding points to be connected quickly and easily.Standoff insulator made from UL recognized resin material.
• Convenient Application: Grounding terminal bolts are slide-able to adapt one or two hole cable lugs.The minimum width is 5/8\" ,centre to centre distance compatible for most 2-hole lugs. Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily. Widely used in high low power distribution cabinet,equipment grounding connections,for power distribution, transmission, fixing copper or copper busbar, etc.
• Customer Service:If you have any question with our products,please contact us when you feel free,we will try our best to solve your problem.

• Adjustable

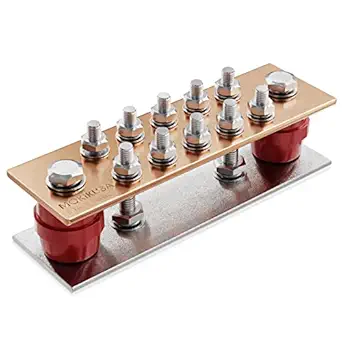

• Pack Two sets of high conductivity copper grounding devices.Each set includes one copper plate, one hot-dip galvanized steel sheet, two SM40 polyester support insulators, 10 sets of washers and bolts.
• Size Copper bus bar:0.16\"x 2.36\"x 7.8\"(4x60x198mm),Thickness 0.16\"(4mm),Width 2.36\"(60mm),Length 7.8\"(198mm),hole 0.35\"(9mm).
• High Quality Material The copper plate is T2 grade and contains 99.9% copper.SM40 polyester made from UL material,rate up to 6kv.The washer and bracket are made of 304 stainless steel.
• Outstanding Product The high purity of copper ensures good eletrical conductivity.UL certified polyester ensures excellent insulation.The 304 stainless steel used in the washer has the characteristics of corrosion resistance and high temperature resistance,which ensures the service life of the product.
• Application Widely used in high low power distribution cabinet,equipment grounding connections,For power distribution, transmission, fixing copper or copper busbar, etc.

• Material: standoff insulator made from UL recognized resin material and meets the requirements of UL 94 VO for self-extinguishing materials. Copper busbar made of high conductivity copper plate to inhibit corrosion and ensure good conductivity providing multiple grounding points to be connected quickly and easily. Terminal bolts are made of stainless steel for sturdiness and rustproof.
• Copper bar ground bar kit dimension: 7.88\"x2.36\"x .157\"(200mm x 60mm x 4mm) , Terminal bolts size is 5/16.
• One set Includes: 1x copper plate, 1 x hot galvanized steel plate,2 x standoff insulators, 16 x sets of screw bolts,nuts and washers.
• Convenient Application:Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily. Widely used in high low power distribution cabinet,equipment grounding connections,for power distribution, transmission, fixing copper or copper busbar, ham radioetc.
• 100% after-sales guarantee. If you have any problems within 30 days of receiving the goods, you can enjoy the unconditional return refund service.

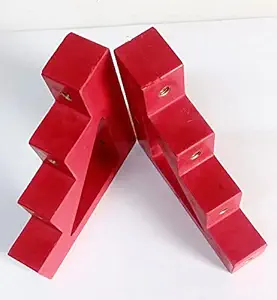

• Product Name : Epoxy busbar support insulator electrical power bus bar insulated insulators
• Colour : Red
• Package Content : 2 Pcs, Material : Porcelain (BMC,DMC,SMC), (Size: 13 x 13 x 3 cm, Step Distance : 3 x 3 cm , Thread Size 1(8mm) & Thread Size 2 (10 mm),Inner Triangle : 7 x 7 x 10 cm)
• Usage/Application: Electric Control, Feature: Heat resistance, Industrial, These are very easy to install, The use of a modern polymer channel has also reduced the weight of our earth bars, making them lighter and easier to handle, Insulator is the special part to fix,install and insulat on communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.)

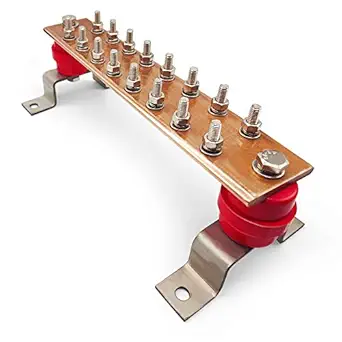

• .25\" (1/4\") x 2\" x 10\" Copper Ground Bar with 1/4''* 16 Terminal Positions.
• This is a high conductive copper ground bar set, including one copper plate, two SM40 polyester standoff Insulators, two stainless steel brackets, 16 sets stainless steel washer& bolts .
• SM40 polyesters made from UL material - QMFZ2.E252110,Rated Uimp up to 6kV .
• Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily. Comes pre-assembled with brackets and insulators attached for quick installation. Widely used in high low power distribution cabinet,equipment grounding connections,For power distribution, transmission, fixing copper or copper busbar, etc.
• 100% after-sales guarantee. If you have any problems within 30 days of receiving the goods, you can enjoy the unconditional return refund service.
