Insulators, Insulation Material & Accessories - Bus Bar Insulator

• Solar Fencing Heavy Duty Virgin Plastic Insulator.
• High UV resistance - extra long-lasting Life.
• Easy To Install & Maintain As It Is Fixed With The Help Of Nylon Ropes or other Ropes.
• Solar Fencing Plastic Insulators White.

• This insulator are made up of heavy duty Plastic Material and is widely used in Solar Fencing Systems or Zatka Machines in Farms.
• It is longer than Noramal Insulator as well as its weight and thickness is also higher than others so it avoids chances of leakage, short circuits and its strenth is also made higher to avoid broken issues in others.
• Easy to install & maintain, as it is fixed with the help of nylon ropes or other ropes.
• This pacakge includes pack of 50 black color plastic insulators.

• Material Polyproplylene Co Polymer
• Weight 20 gram
• Height*Width*Length 65mm*34mm*28mm
• Strength Upto 100 kg
• Voltage Efficiency 20 kv

• Litost Terminal Strips Connection Plate TPN-100 Suitable Current Rating 100 AMP. 4 Pole
• GENERAL DATA Type:-TPN-100 Wire Termination Technology:- Nut Driver Operated Ratings:- 750 V/100A/25 sq mm/2.3 Nm/4P Wire Termination Technology:- Nut Driver Operated
• Ratings:- 750 V/100 A/25 sq mm/2.3 Nm/4P
• DIMENSIONS Height (mm):-49 Height (inches):- 1.93 Width (mm):-115 Width (inches): -4.53 Thickness (mm):-40
• MATERIAL DATA Housing:-PF/DMC Moulded Standard Colour: Black(In PF), Grey(In DMC)
• RATED CONDUCTOR SIZE Stranded Wire min (sq mm):-6 Stranded Wire max (sq mm):-16 Solid Wire min (sq mm):-6 Solid Wire max (sq mm):-25
• RATINGS Rated Voltage (V):-750 Rated Current(A):-63 Rated Cross Section (sq mm):-6
• Short Time Withstand Current (kA):-1.92
• Rated Impulse Withstand Voltage (KV):-8
• Pollution Degree:-III

• Material - DMC/Epoxy
• Usage/Application -industrial
• Design -Customized......Size..30/35/45/40/60
• Packaging Type - Box
• Design -Customised Driven Type -Manual

• High UV resistance - therefore extra long-lasting.
• Highly durable and very easy to use.

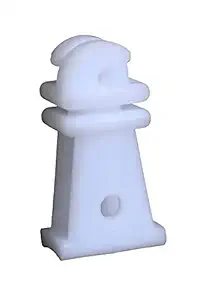

• Martial : High A1 Plastic Material Corner Insulator
• asy To Install & Maintain As It Is Fixed With The Help Of Nylon Ropes
• Rated - Voltage15kv
• Plastic Insulator For Fitting With Cord Or Wire To Intermediate Post
• Material-Poly Propylene

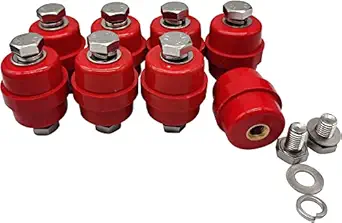

• 1.SM-40 (with stainless screw)busbar insulator connector,busbar insulator.
• 2.Material: UL resin material.
• 3.Size : SM-40;product height:40mm(1.57'');Holes: M10
• 4.Contains: 8 pieces,with screw bolts (M10)
• 5.Use: widely used in high low power distribution cabinet.For power distribution, transmission, fixing copper or alumnium busbar, etc, play the role of insulation and connection.

• Brand NameElapp
• ColourRed
• Part NumberEL-001
• Size - - - -Different Size
• Item type--Epoxy /DMC

• electric busbar box 32Amp, 415volt. Embossed Earthing terminals are provided on both sides
• Heavy duty busbar chamber box
• Busbar ready with copper and heavy duty model
• Enclosures are fitted to removable top & bottom gland plates with conduit knockouts with sufficient space for different cable size connections.. Foot stands provision for surface mounting
• easy to use.

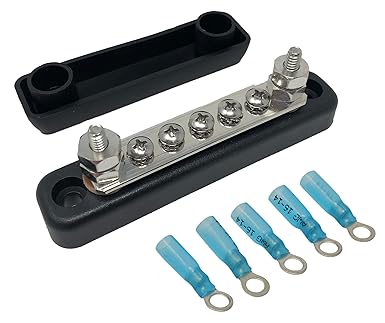

• Bus Bar is rated to 100 Amps and works great for all types of power and ground distribution
• Bus Bar includes Five #8-32 Stainless Steel Terminals and Two 3/16\"-24 Stainless Steel Studs
• High quality Tin-Plated copper bus and plastic cover provides excellent resistance to harsh environment
• Includes Five #8 Adhesive Heat Shrink Ring Terminals providing impervious seal to connections
• Great for automotive, marine, RV, motorcycle and and many other 12 volt applications

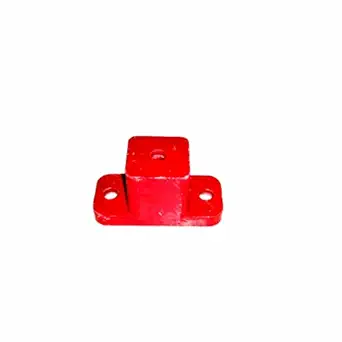

• DMC T Type Insulators are designed for use in electrical installations, particularly for overhead power transmission and distribution systems
• These insulators are made from high-quality porcelain, which is known for its excellent electrical insulation properties and durability. The T shape of the insulator allows for easy installation, and the design provides a high level of mechanical strength and stability.
• These insulators are suitable for use in a wide range of environmental conditions and are resistant to extreme temperatures, humidity, and UV radiation. They are also low maintenance and have a long service life.
• Overall, DMC T Type Insulators are an ideal choice for electrical installations that require reliable and high-quality insulation.
• DMC T Type Insulators are mainly used in overhead power transmission and distribution systems for providing insulation between the electrical conductors and the ground

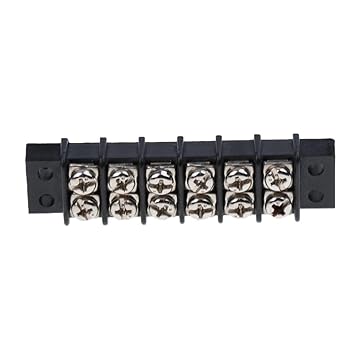

• Package Includes: 2 x Terminal Bus Bar.
• Rugged Construction: These terminal block connectors feature high strength, high hardness, and good wear resistance.
• Contact Material: Copper Manufacturing Process: Cold Pressed; Insulator Material: Plastic.
• Total Size: 83 x 12 x 21mm/3.3\" x 0.5\" x 0.8\"(L*W*H). Mounting Hole Diameter:4mm/0.16\".
• Mounting Hole Center Distance: 71mm/2.8\". Screw size: M4.

• Corrosion Resistant Construction.
• Moisture Repellent Bakelite Insulator Base.
• Each Screw Pair Is One Isolated Circuit
• Protective Insulator Barrier Strips.
• Kindly refer the product description before buying the product.

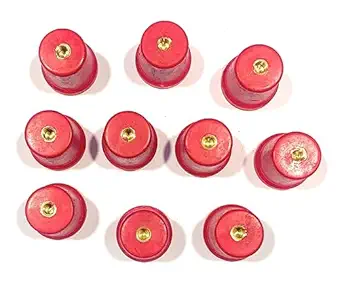

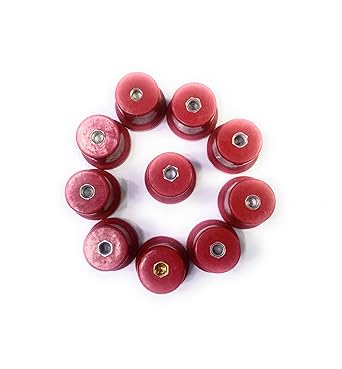

• Litost Bus-bar Insulator Supports (Buse Size M-8) 40x40 MM-RED Pack Of- 10 Nos
• Product Name : Bus bar Insulator ; Model Name : INSU-A105
• Material : Resin, Brass ; Color : Red,
• Package Content : 10 x Bus bar Insulator
• Total Size: 40mm x 40mm(1.5\" x 1.5\")
