Electrical Diodes By Sharvi

• Input Voltage: 60
• Current Dissipation: 10A
• Type: Voltage Regulator
• Supply Voltage: 60v
• Dissipation Power: 10A

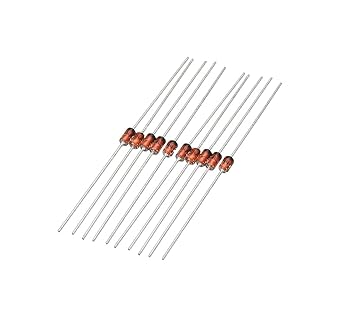

• Voltage Rating: 13V; Power Rating: 500mW (1/2 watt)
• Tolerance: + 5%; High Reliability
• Zener Current: 1uA; Test Current: 5 mA
• Mounting Type: Through Hole; Package: DO-35-2
• Applications: Voltage regulator; Voltage Protection; OverVoltage Protection etc.

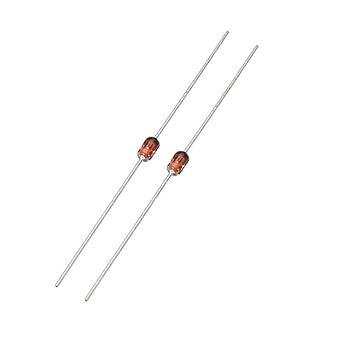

• Voltage Rating: 6.8V; Power Rating: 250mW
• Vz-tolerance: + 5%; High reliability
• Very sharp reverse characteristic
• Mounting Type: Through Hole
• Applications: Voltage regulator; Voltage Protection; Over Voltage Protection etc

• Model No: APT40DQ100BCTG; Reverse Voltage: 1000V; Forward Current: 80A; Packaging: Tube
• Vf Forward Voltage: 3.08V; Max Surge Current: 210 A; Ir Reverse Current: 100 uA; Mounting Style: Through Hole
• Recovery Time: 25 ns; Type: Fast Recovery Rectifiers; Configuration: Single; Package/Case: TO-247-3
• Minimum Operating Temperature: 55 degreeC; Maximum Operating Temperature: + 175 degreeC
• Applications: General Purpose

• Fast switching; Low forward voltage, high current capability; Low power loss, high efficiency; High current surge capability
• Pin Count: 2; Instantaneous Forward: 0.9V; Average Forward Rectified Current: 3A; Peak Forward Surge Current: 80A; Repetitive Peak Reverse Voltage: 40V
• DC Blocking Voltage: 40V; RMS Voltage: 28V; DC Reverse Current at rated DC Blocking Voltage: 0 ~ 20 mA; Typical Junction Capacitance: 250pF; Operation and Storage Temperature Range:-55 degreeC ~ -125 degreeC
• Mounting: Through Hole; Supplier Package: DO-27; Diameter: 5 mm; Approx. weight: 2 gm; Compliant: ROHS
• Application: Low voltage high-frequency inverters; Freewheeling; Dc/dc converters; detect signals; Polarity protection applications; radio frequency (RF) applications; logic circuits, due to fast switching; Schottky diodes are used in switched-mode power supplies

• Low coat construction; Low forward voltage drop; Low reverse leakage; High forward surge current capability; High temperature soldering guaranteed: 260 degreeC/10 secods/.375(9.5mm)lead length at 5 lbs(2.3kg) tension
• Pin Count: 2; Instantaneous Forward Voltage: 1.1V; Repetitive Peak Reverse Voltage: 1000V; DC Blocking Voltage: 1000V; RMS Voltage: 700V
• Average Forward Rectified Current : 1A; Peak Forward Surge Current: 30A; DC Reverse Current at Rated: 5A; Full Load Reverse Current, full cycle average: 30A
• Typical Junction Capacitance: 30pF; Operating Junction Temperature Range -55 degreeC ~ -150 degreeC; Mounting: Through Hole; Supplier Package: DO-41
• Diameter: 2.7 mm; Approx weight: 1 gm; Compliant: ROHS
